Line for hot break tomato paste

Tropical Food Machinery is continuously developing and following the trends of the market regarding the most advanced technologies. Our factory in Parma – Italy has developed and implemented technologies that results in healthier products. We can also mention some items about the extraction line of tomato juice as follow below:

High consistence of tomato paste:

UHV system to reach the inactivation of enzymes and microorganisms in less than 7 seconds;
great thermal inertia;
high speed of recirculation;
final viscosity of the concentrate below 2º Bostwick.

High yield in extraction of the juice:

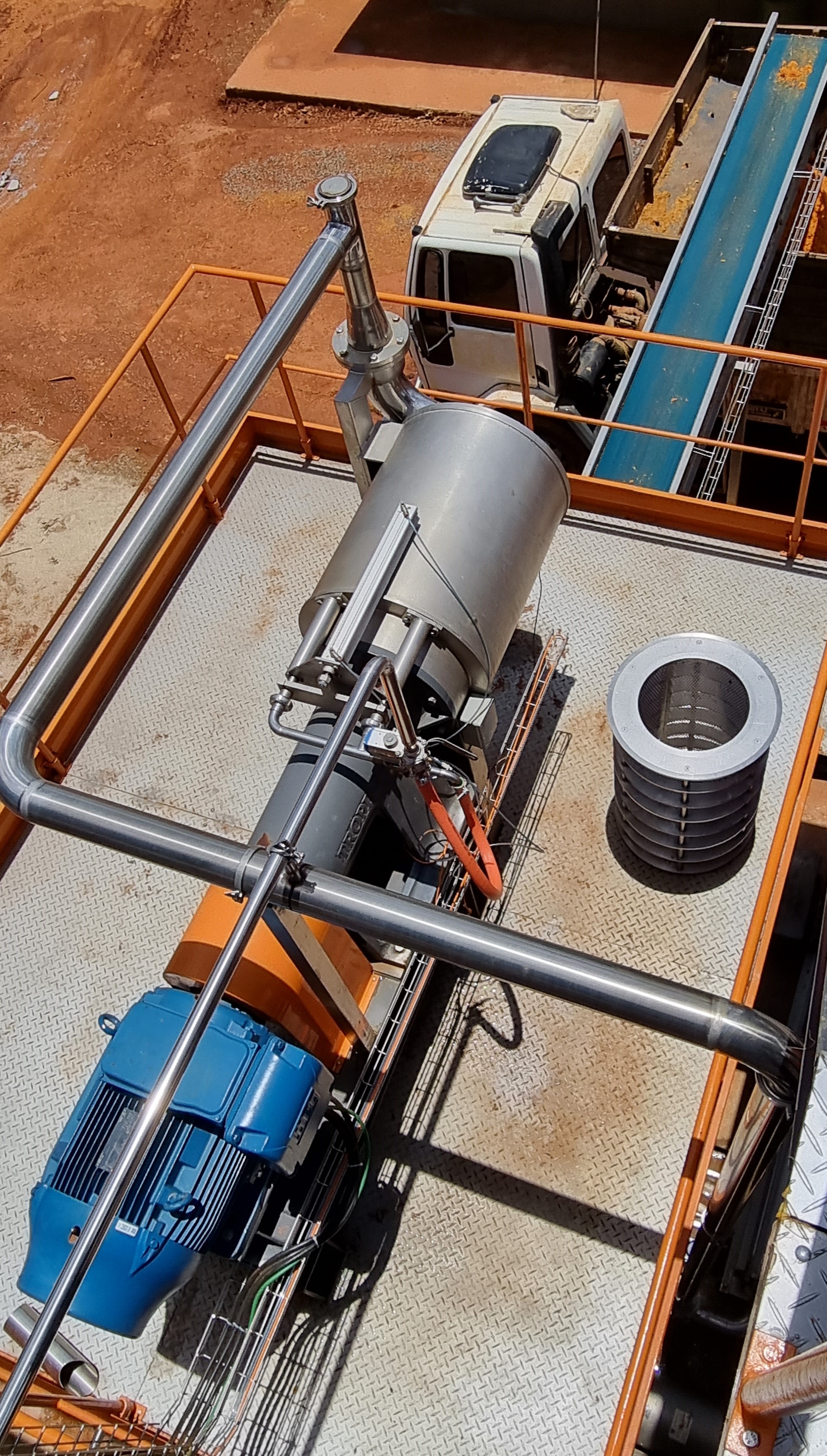

new turbo extractors specifically developed to the extraction of the tomato juice;
new design of centrifugal beaters to achieve the best yield;
new conical-trunk sieve mounted upon guides that allow an axial displacement that determines the distance in relation to the beaters;
automated washing system with timer that operates during the process.

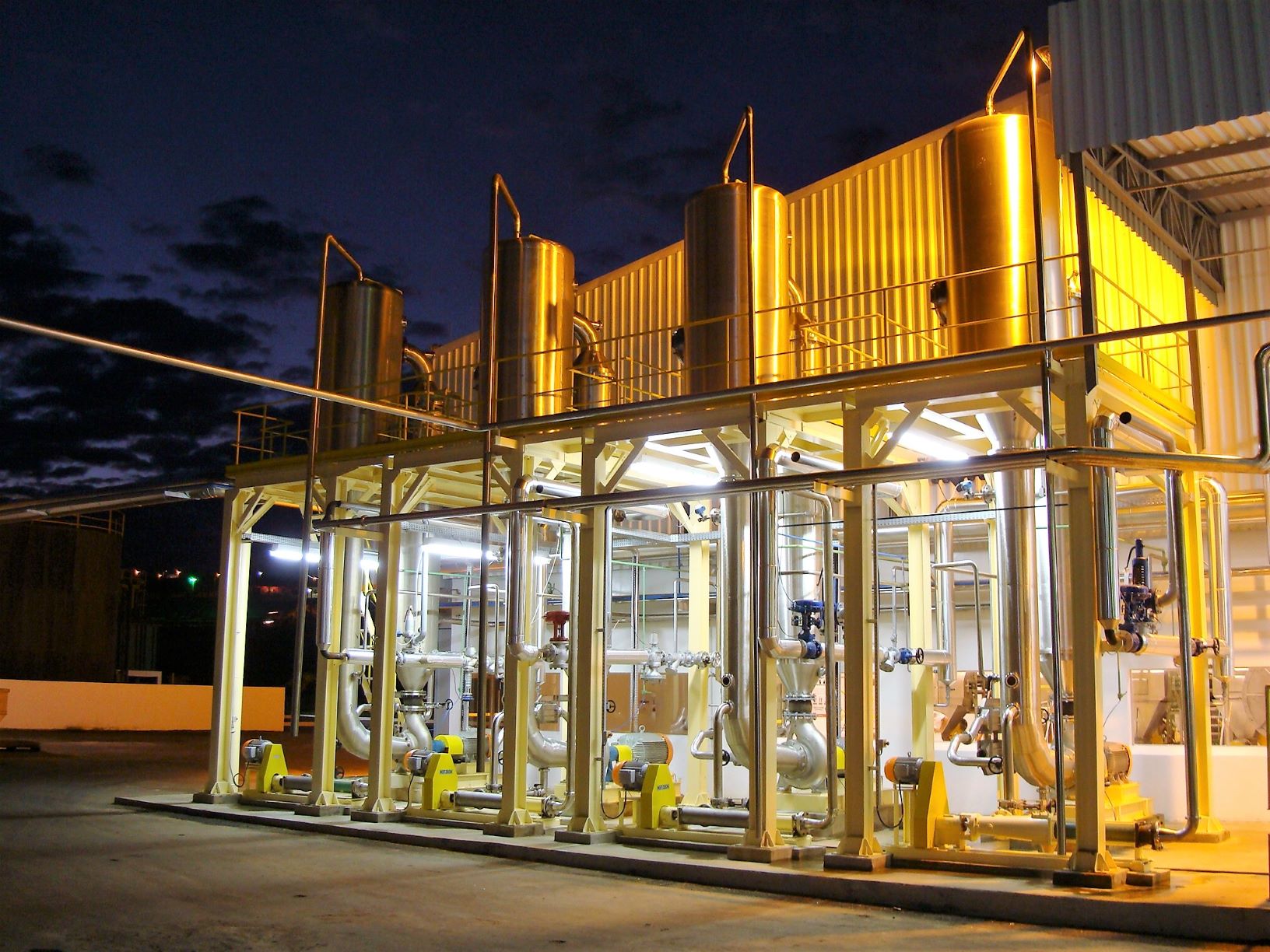

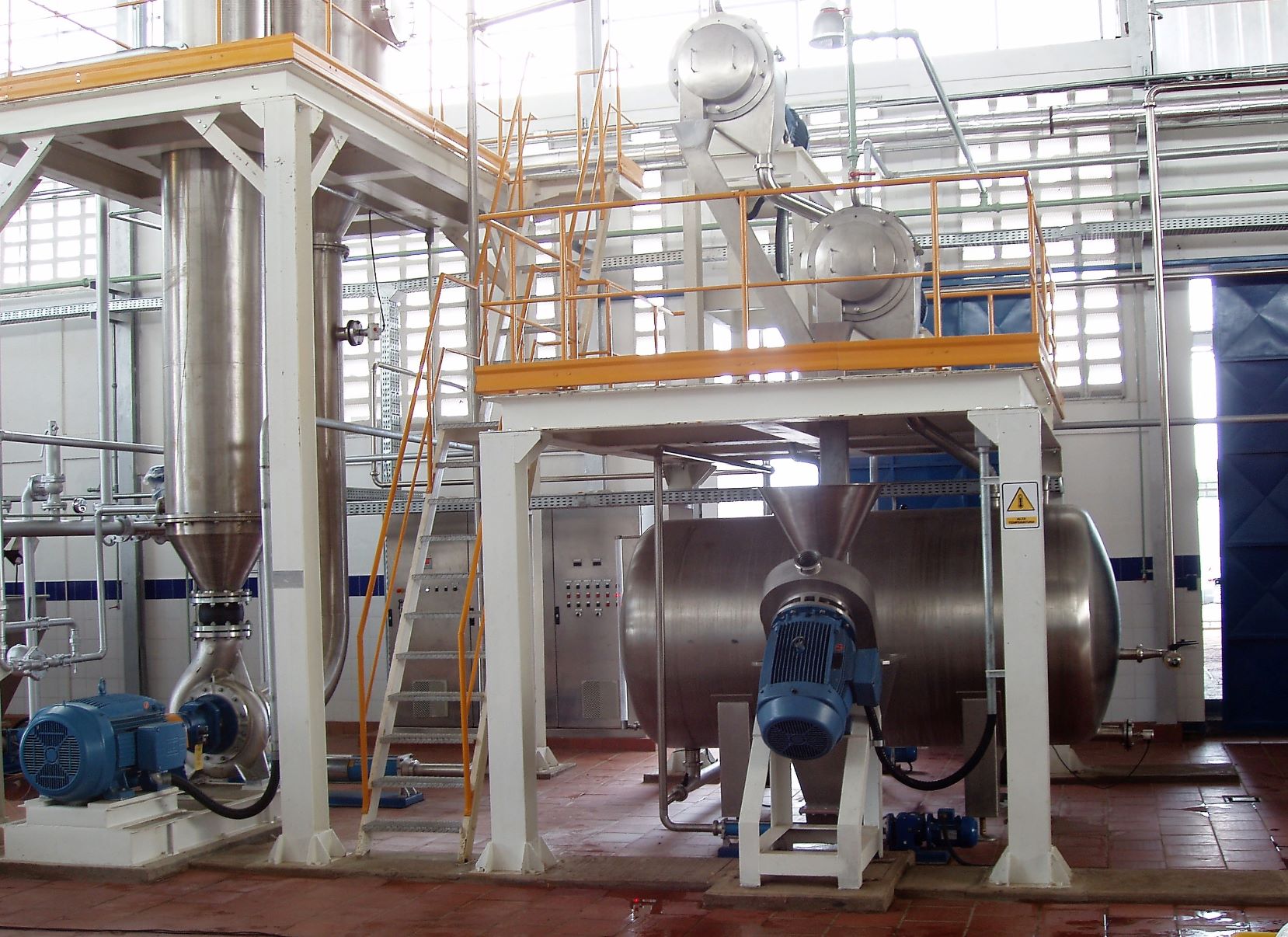

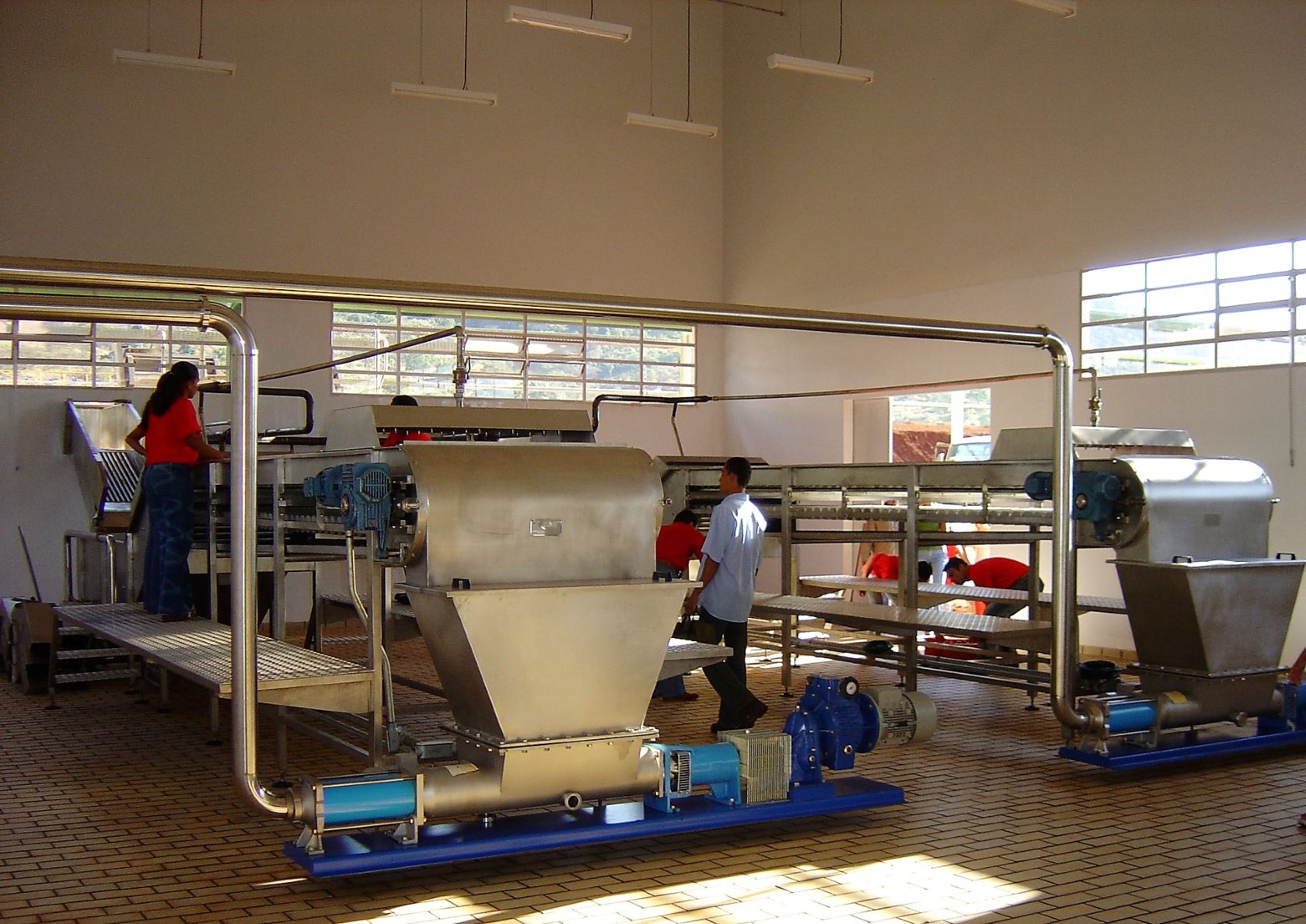

The line consists of:

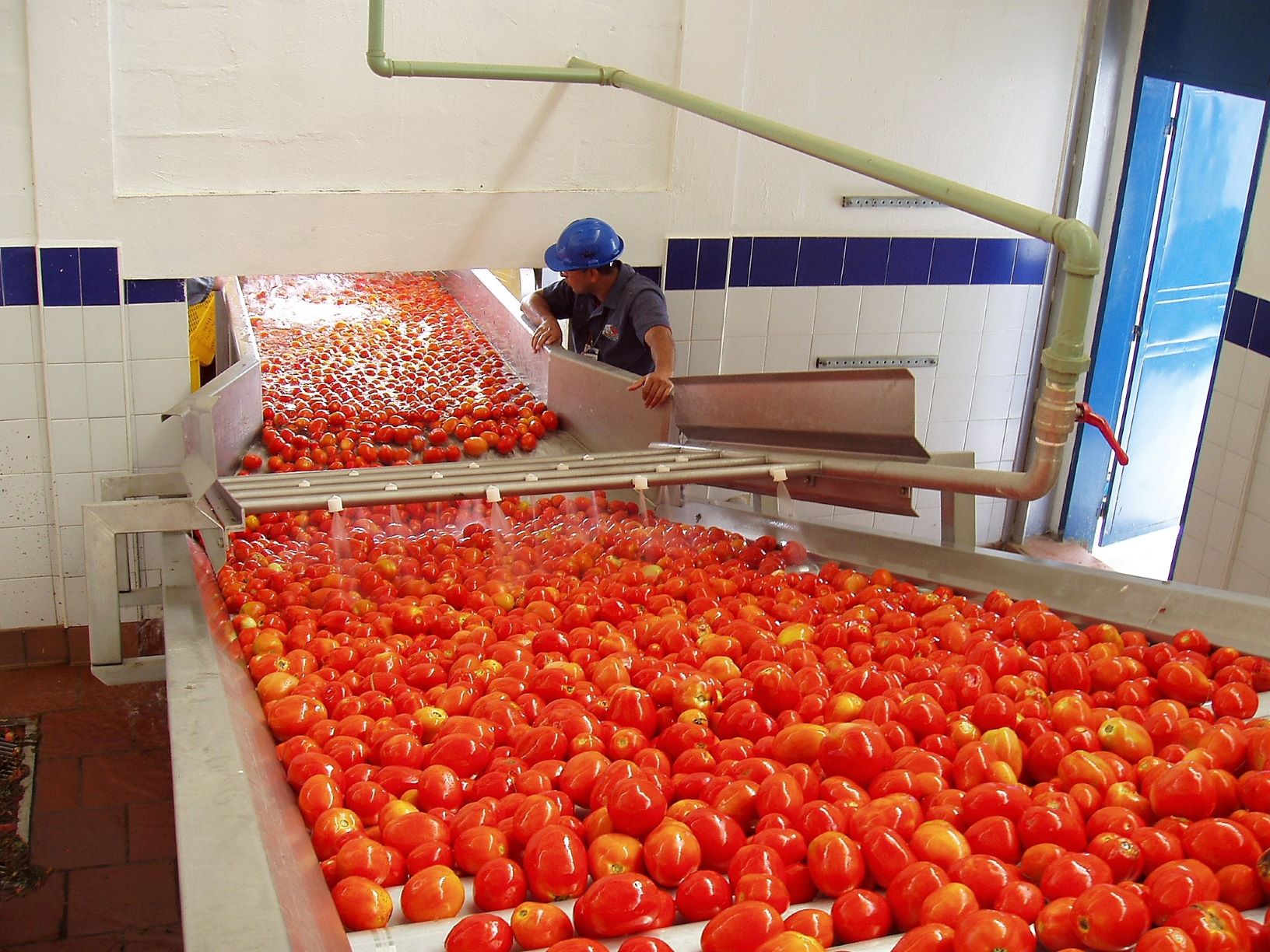

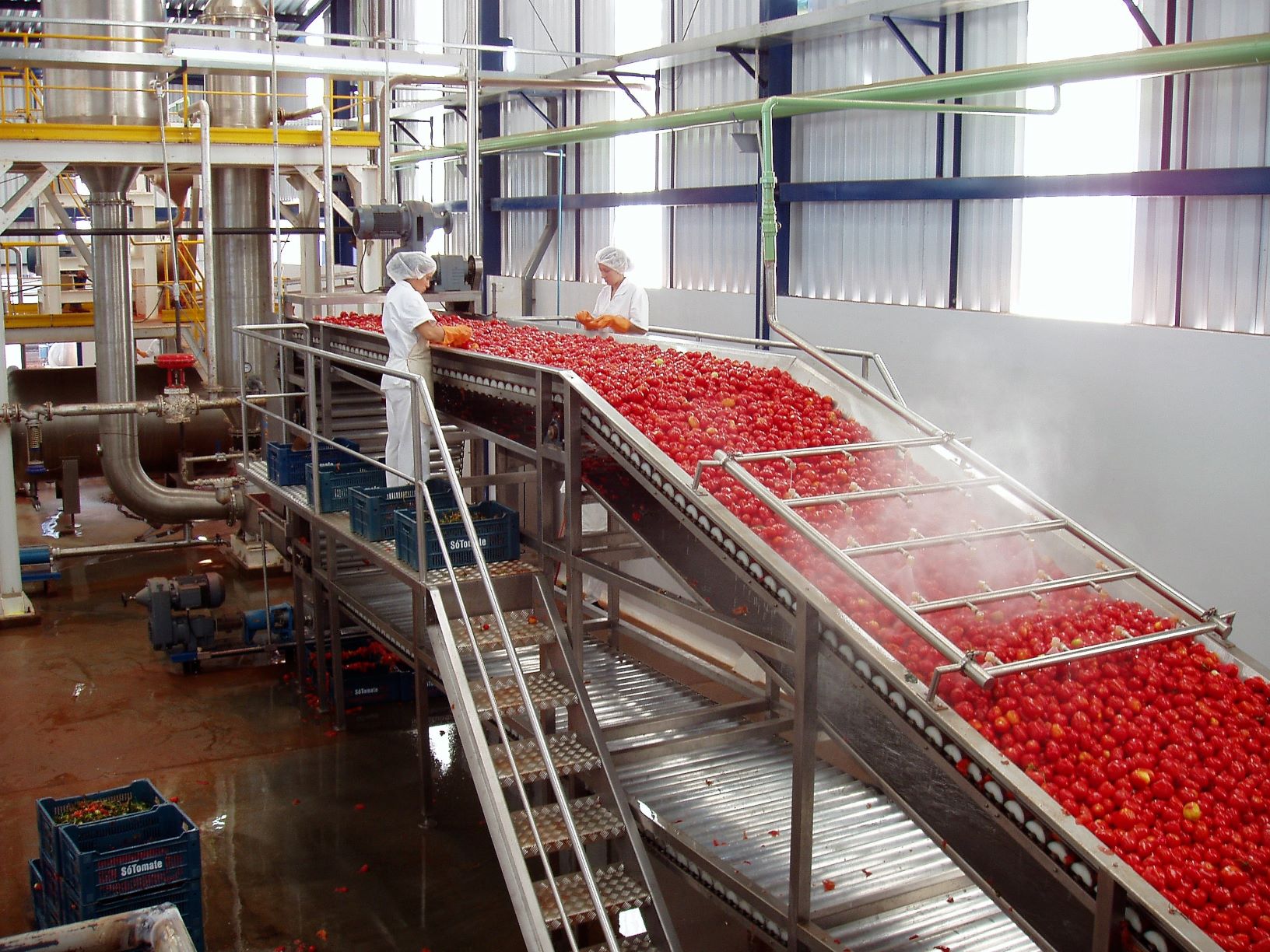

washer combined with the selection plan;
mono pump for whole tomatoes;
UHV enzymatic deactivator;

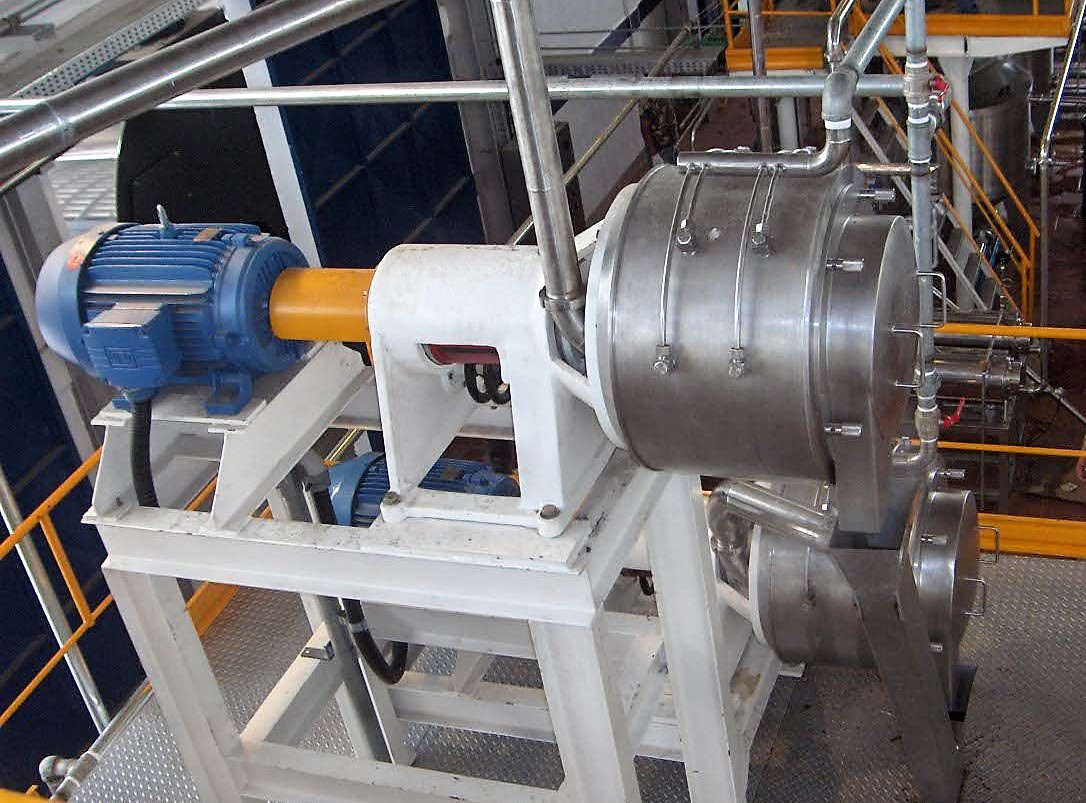

turbo extractor;
equilibrium tank;
platforms, pumps and command panel of the line.

Capacities:

TFM 330 - capacity of processing 330 tons/day of tomatoes

TFM 660 - capacity of processing 660 tons/day of tomatoes

TFM 1000 - capacity of processing 1.000 tons/day of tomatoes

TFM 1500 - capacity of processing 1.500 tons/day of tomatoes
